The ultimate road bike for anywhere you ride
Where Craftsmanship Meets Performance

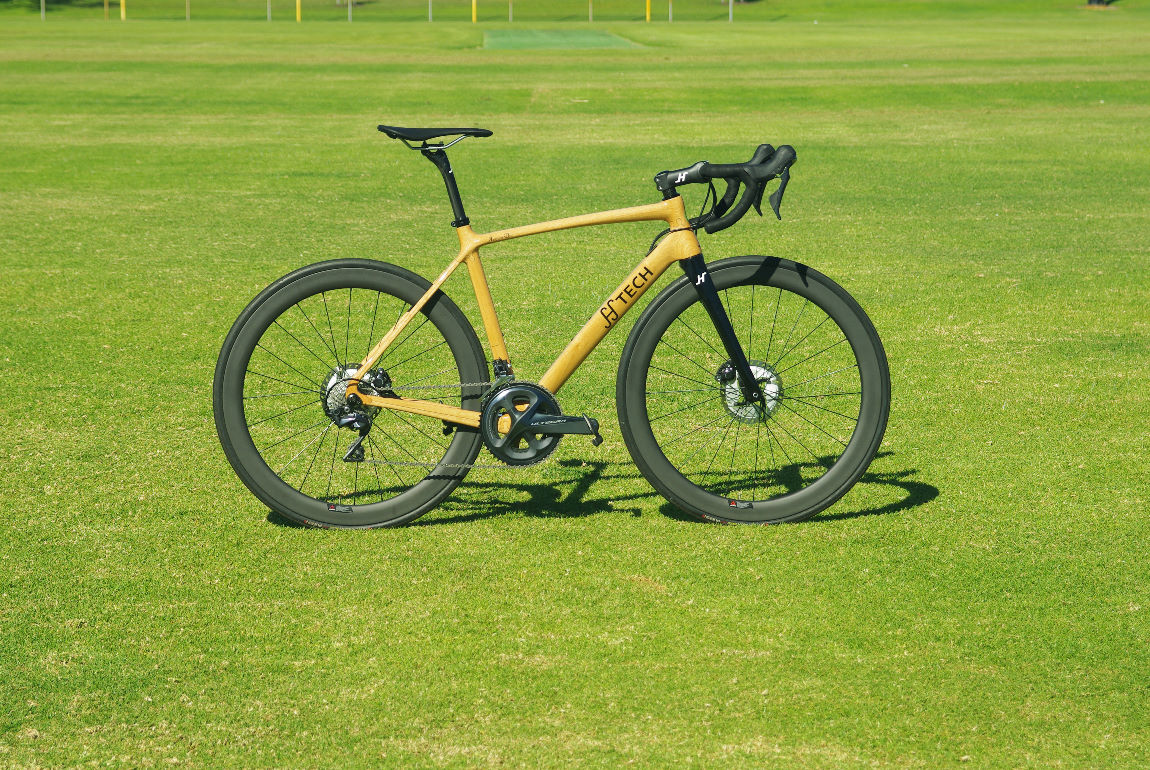

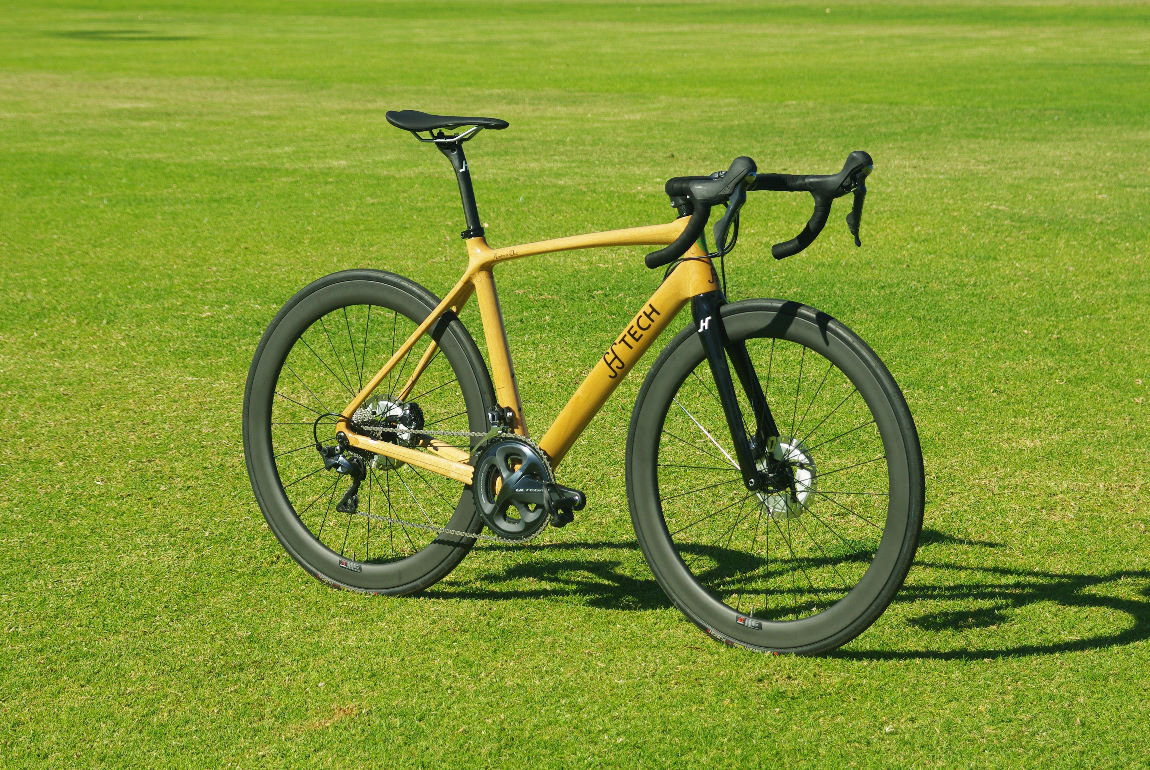

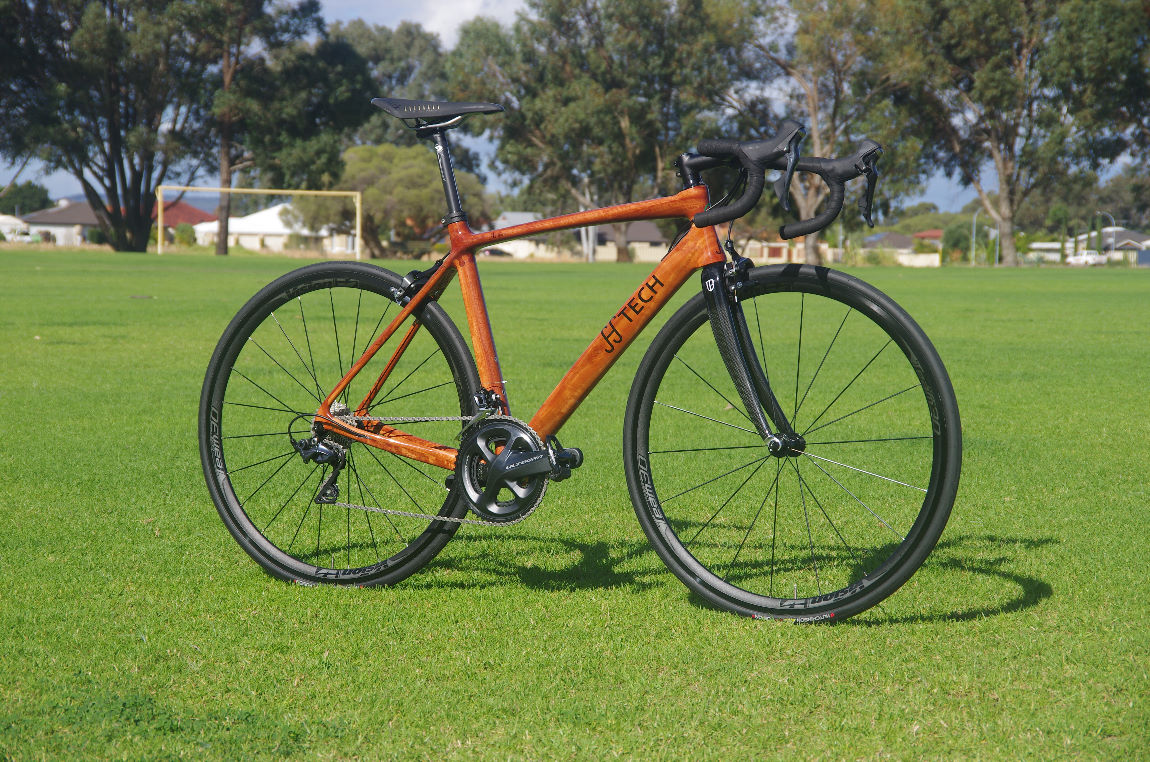

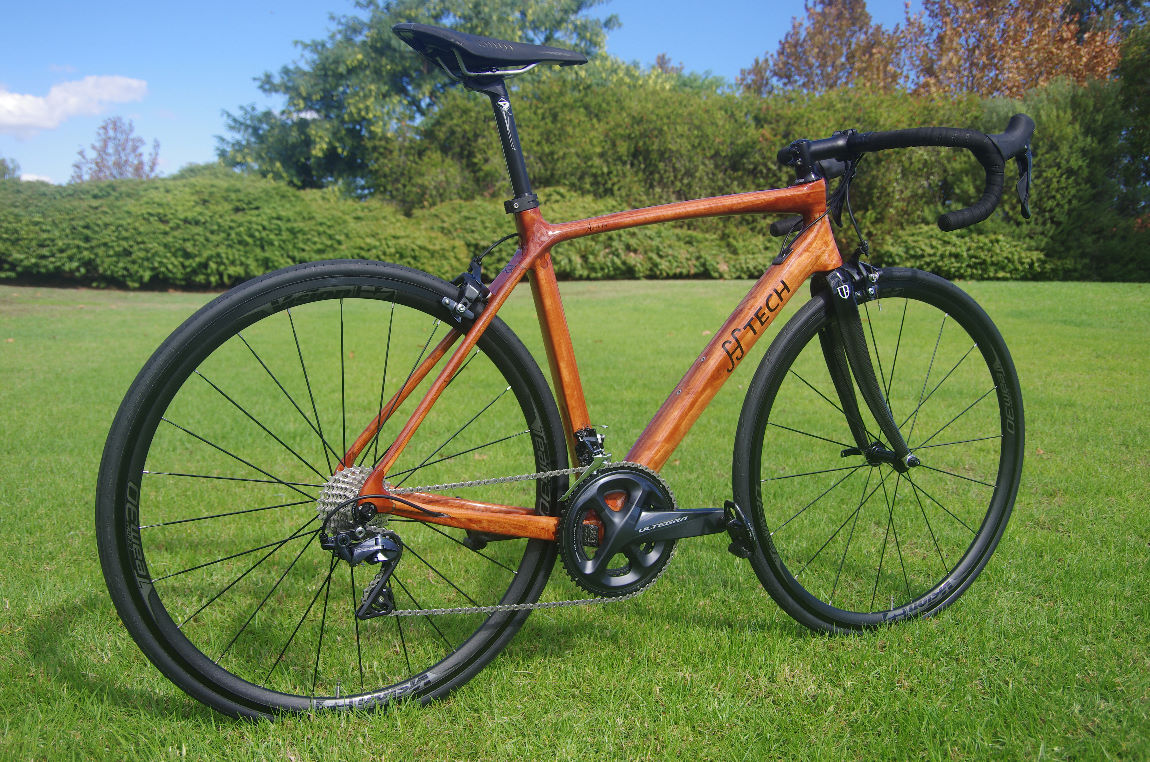

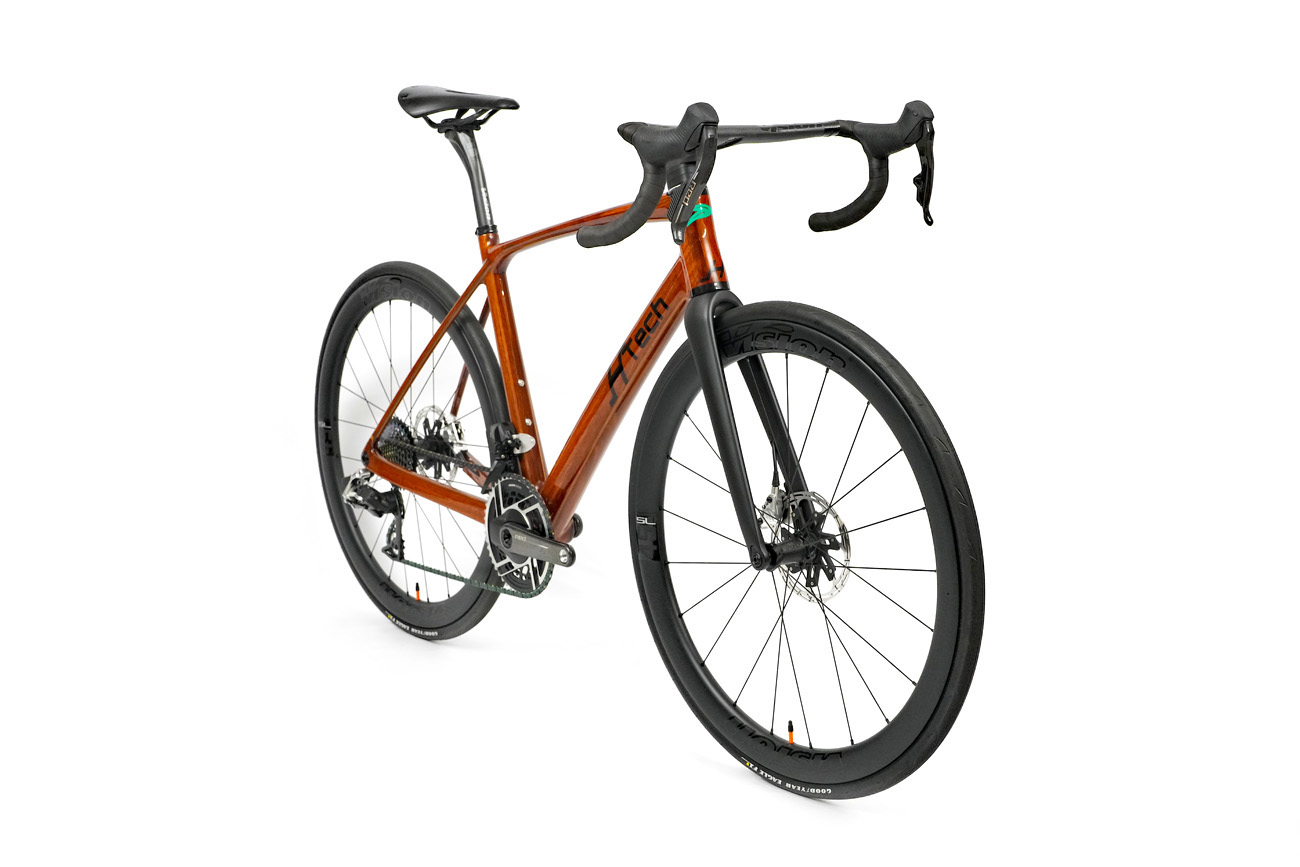

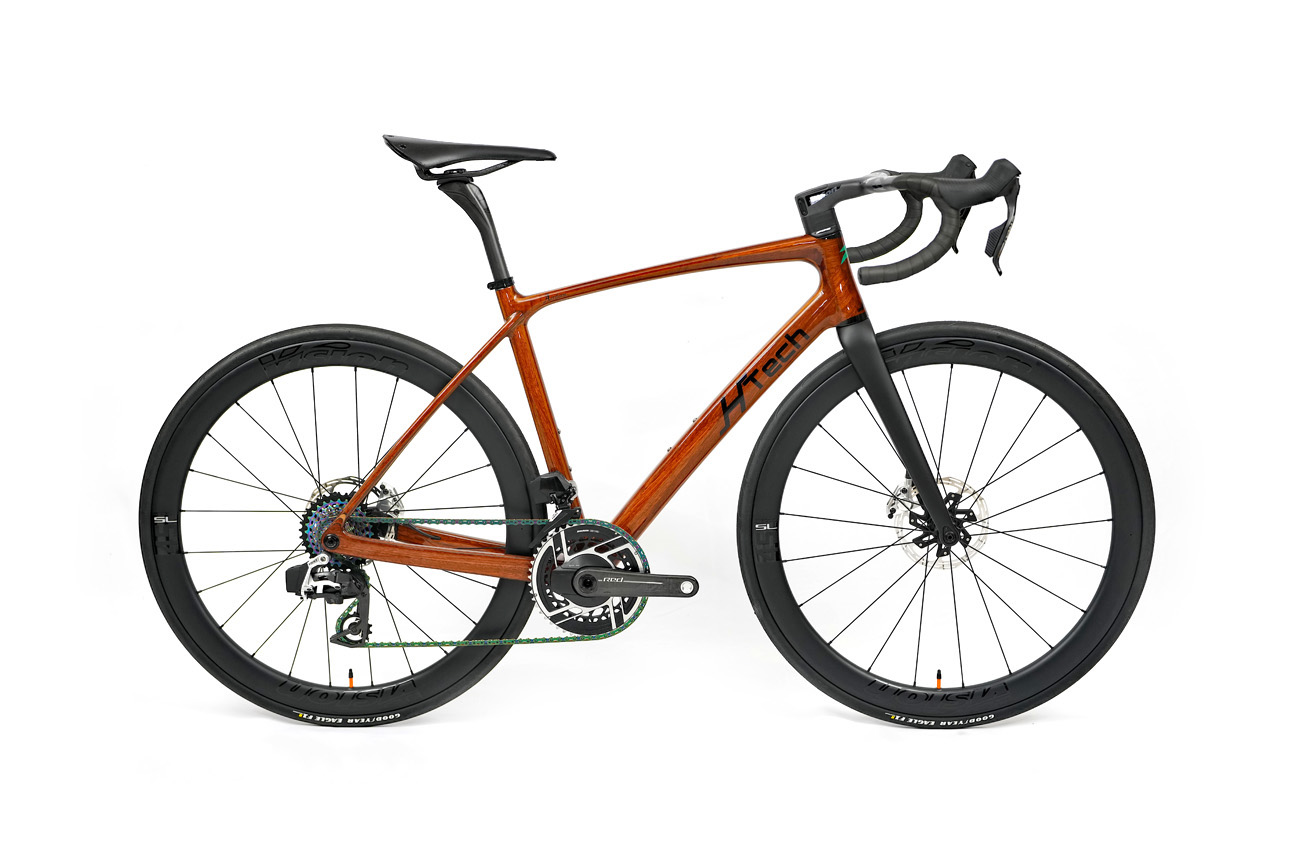

Now in it's 3rd generation, the HTech Aeriform is the definition of unbelievable. With an unparalleled smooth and dampened ride combined with a torsionally stiff bottom bracket, it's the ultimate road bike. The word Aeriform means 'having the form or nature of air', an accurate description of it's smooth ride.

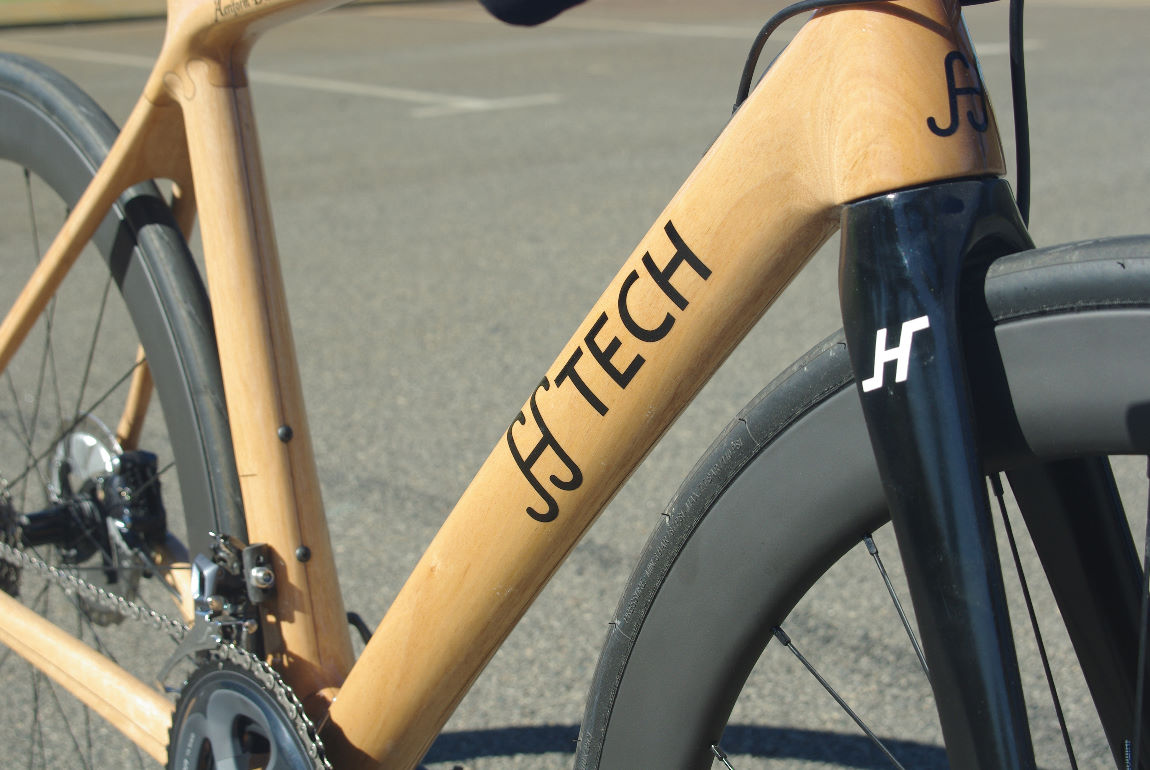

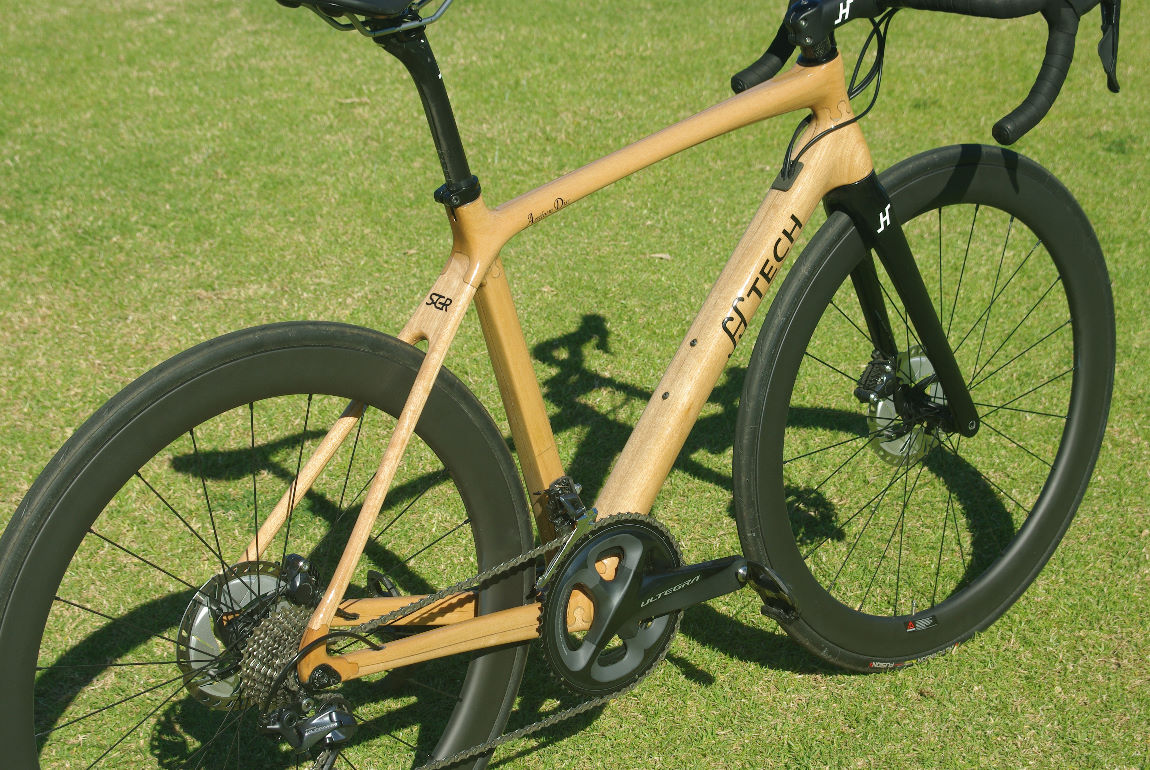

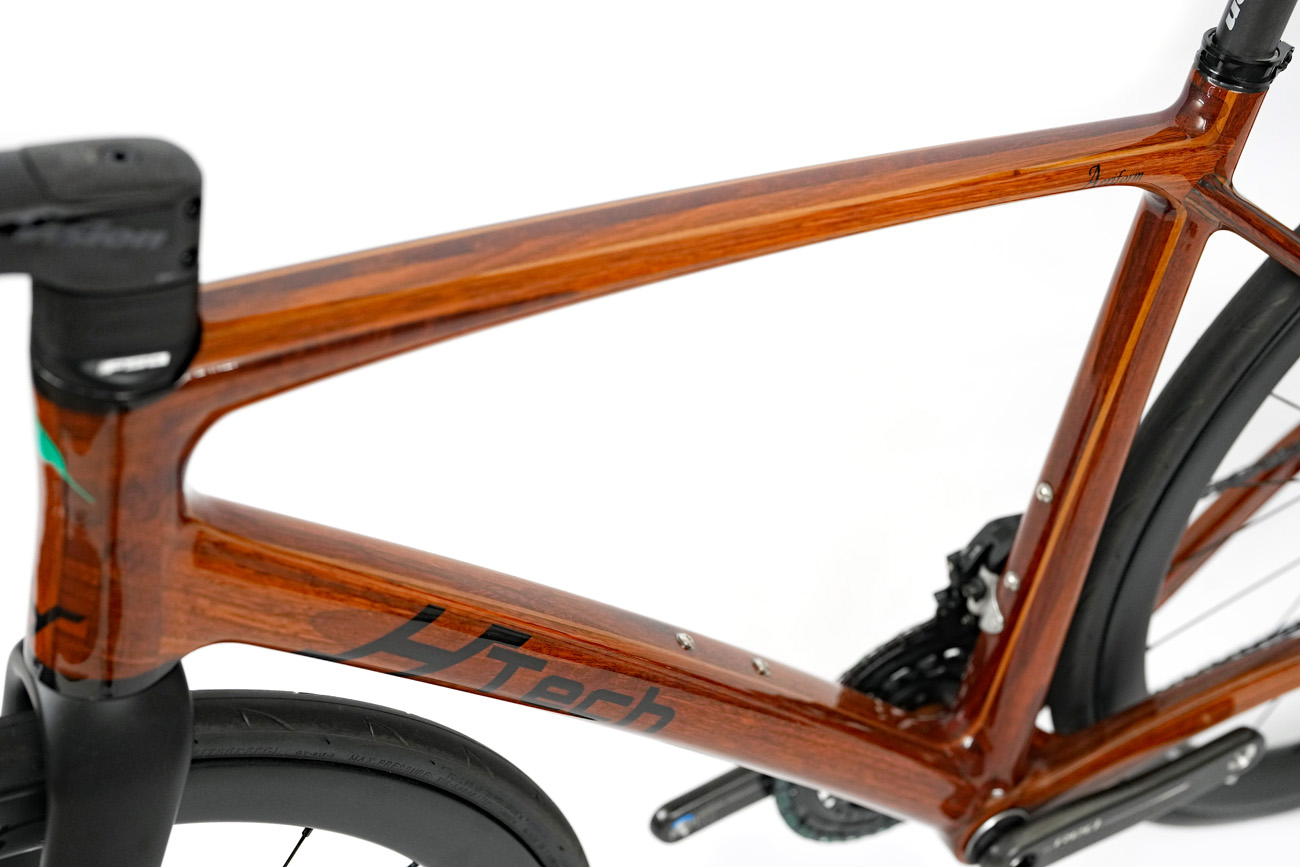

The pinnacle of HTech's range using the most advanced wooden frame manufacturing techniques used by any wooden frame builder. An Aeriform frame is light and responsive without any compromise in ride quality. Designed as a compact frame with a stable geometry that plays into the strengths of wooden frames to have exceptional handling capabilities. Each tube and joint are designed for a combination of incredible aerodynamics, high stiffness and low weight. Each bike frame uses HTech Bikes pioneering SCR technology, creating a bike frame that’s strong enough to handle anything encountered on the road without losing any of the characteristic wood bike comfort expected from HTech.
The Aeriform is available in set sizes to get you riding as soon as possible, while also giving the best possible handling characteristics for our frames. As a premium bicycle the Aeriform can also be custom made to each individual buyer’s requirements for frame size, comfort and appearance, creating a truly unique bike. The HTech Aeriform isn’t mass-produced, it’s meticulously crafted for those who appreciate the finer details.
Build Level | SRAM Force | SRAM Red | Campagnolo Super Record 13 | |
---|---|---|---|---|
Full Groupset | SRAM Force | SRAM Red | Campagnolo Super Record 13 | |

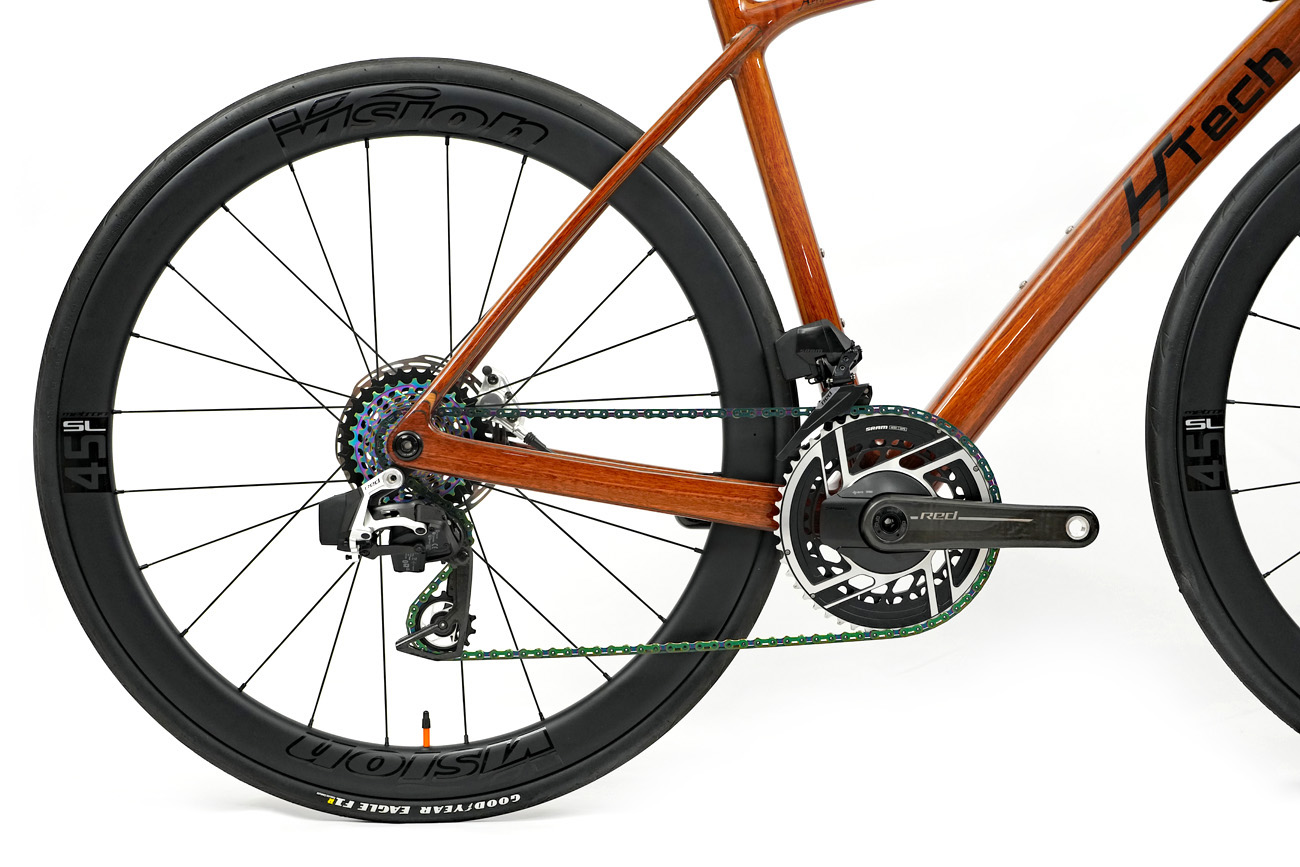

Wheelset | Vision SC45 | Vision Metron 45 SL | Campagnolo Bora Ultra WTO 45 | |
Tyres | Pirelli P Zero Race | Pirelli P Zero Race | Pirelli P Zero Race | |

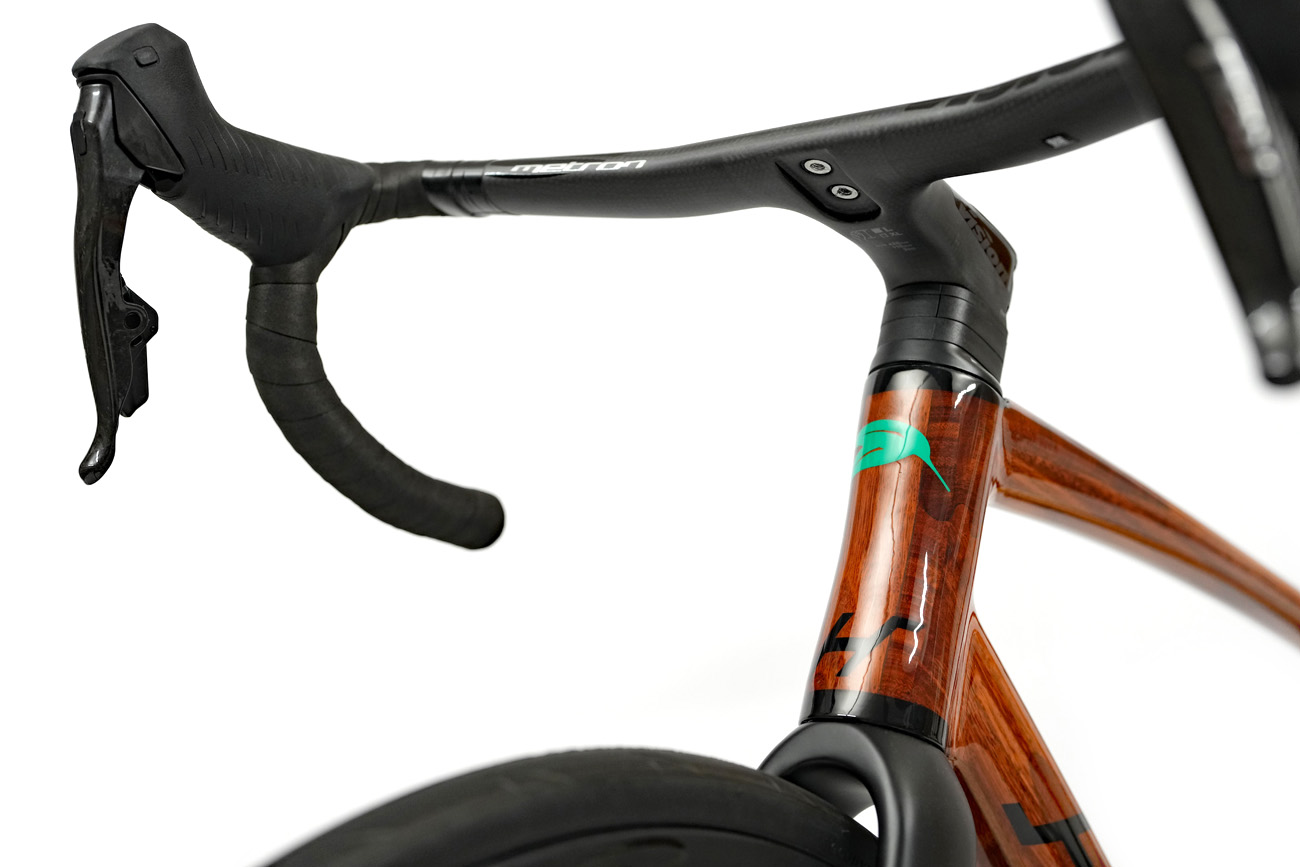

Handlebar | Vision Metron 5D ACR EVO | Vision Metron 5D ACR EVO | Vision Metron 5D ACR EVO | |
Seatpost | Vision Metron | Vision Metron | Vision Metron | |
Saddle | Brooks C15 | Brooks C13 | Brooks C13 | |
Price | ||||
All Prices are in AUD. Standard builds levels can be changed to suit your preferences. Custom builds available. Contact us to discuss your requirements. |

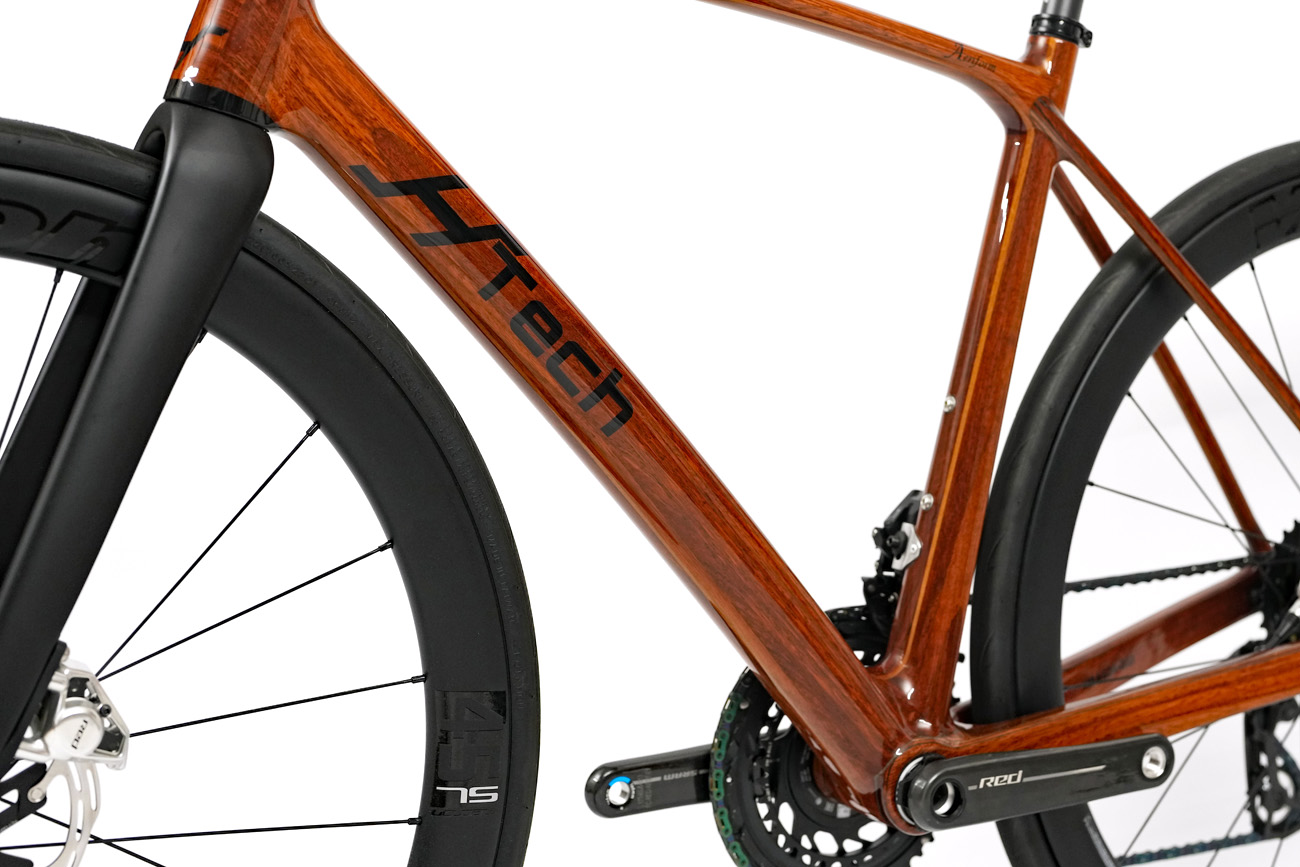

Frame Construction | Machined Timber with HTech SCR |
Wood Species | Jarrah, with a Marri, Blackbutt or Brown Mallet stripe |
Frame Classification | Road, All-Round |
Geometry | Compact Performance Frame |
Cable Routing | Fully Internal, Wireless only |

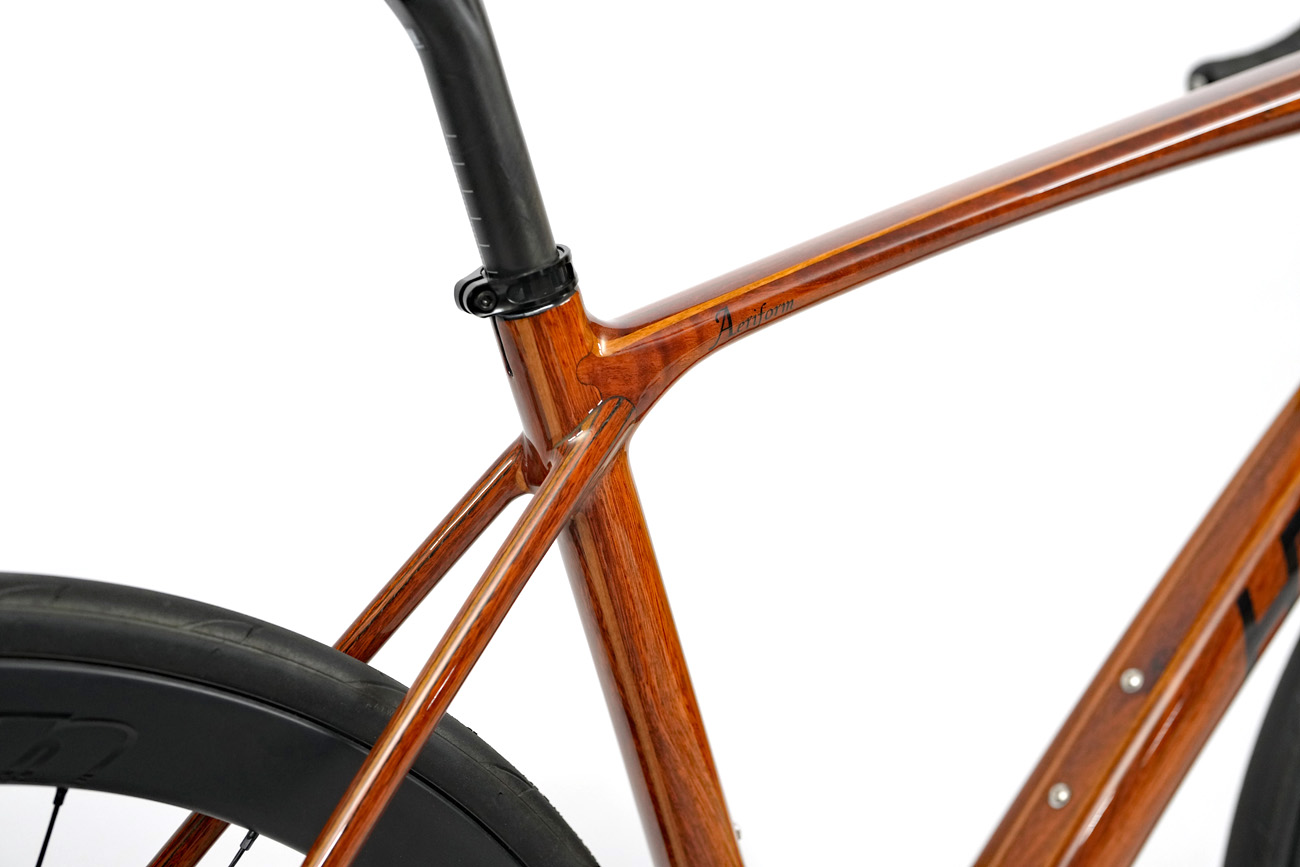

Seatpost Diameter | Round 27.2mm |

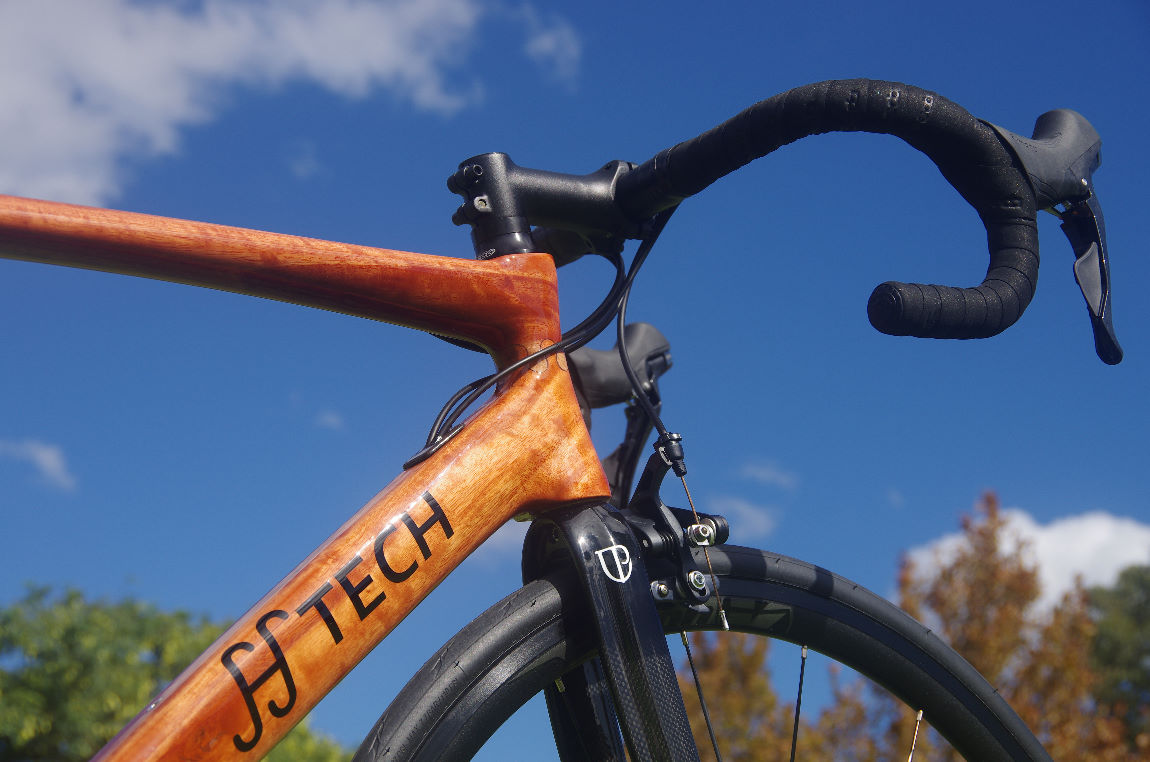

Headset | Integrated 1.5 - FSA/Vision ACR and DEDA DCR Compatible |

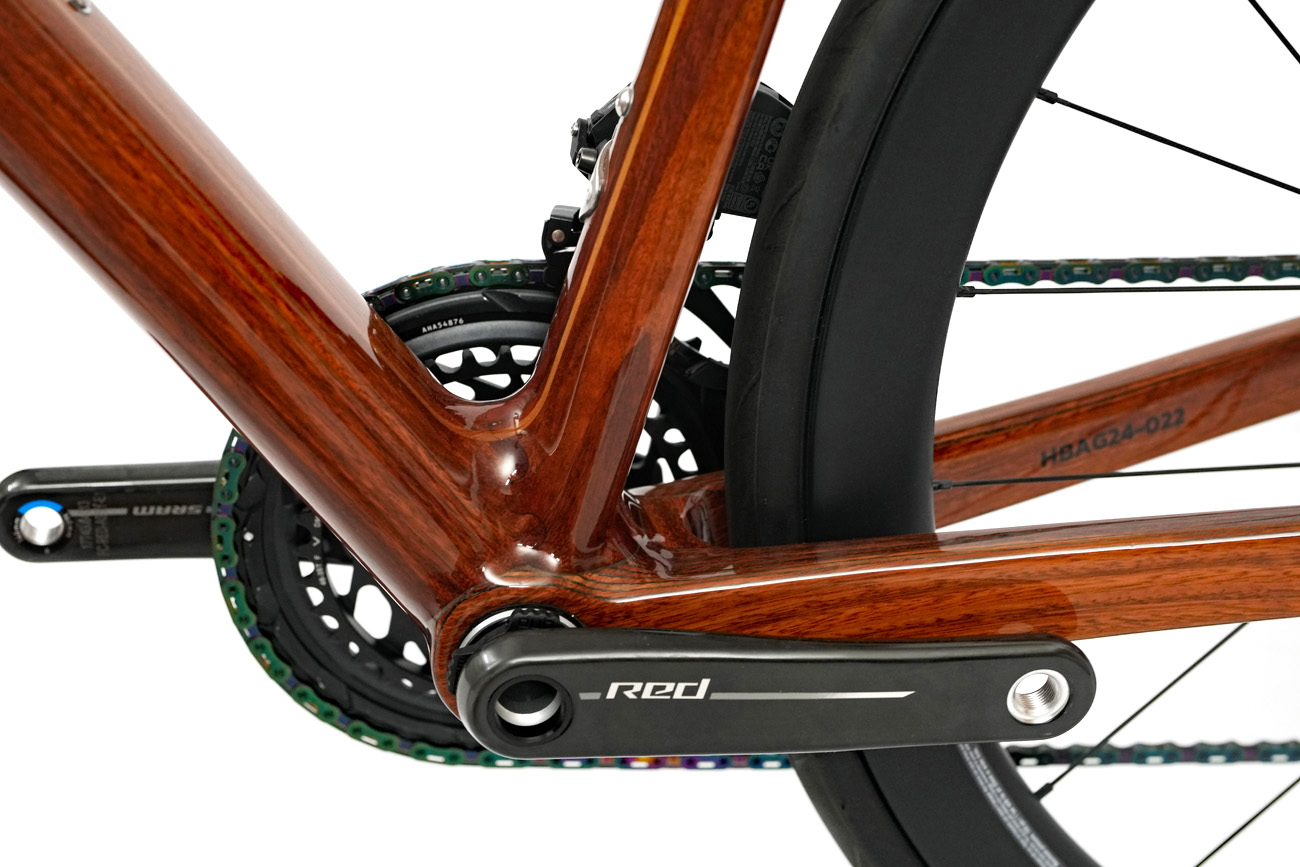

Bottom Bracket | PF86 |
Maximum Tyre Size | 32mm |
Geometry | 50 | 53 | 56 | 59 |
---|---|---|---|---|
A - Effective Top Tube | 515 | 534 | 552 | 569 |
B - Head Tube Angle | 71.7° | 72° | 72.2° | 72.4° |
C - Head Tube Length | 131 | 146 | 161 | 184 |
D - Seat Tube Angle | 75° | 74.5° | 74° | 73.6° |
E - Seat Tube Length | 485 | 502 | 520 | 538 |
F - Bottom Bracket Drop | 72 | 72 | 72 | 72 |
G - Chainstay Length | 415 | 415 | 415 | 415 |
H - Trail | 65.8 | 63.9 | 62.7 | 61.5 |
I - Wheelbase | 979 | 991 | 1002 | 1013 |
J - Standover | 708 | 723 | 740 | 756 |
K - Reach | 372 | 382 | 390 | 395 |
L - Stack | 534 | 550 | 565 | 587 |
